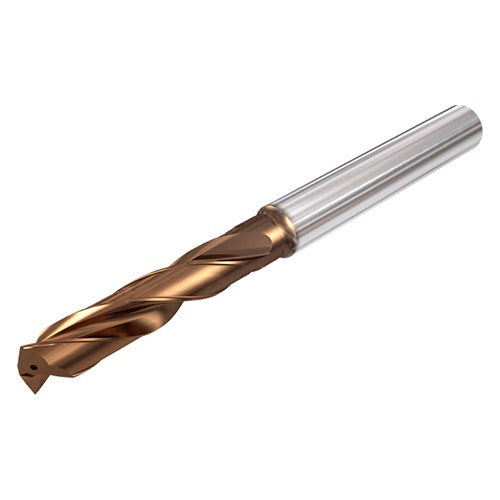

SCD 096-046-100 ACP5FL IC608
Item #: EH553411629
Brand: Iscar
Model #: 3411629
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9.6 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.6 mm |
| Tool Type | Solid Carbide Drill |
| Coating | AlTiCrSiN |
| Grade | IC608 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Measurement Type | Metric |
| Application | | Drilling | |
| Usable Length (LU) | 46 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Length Chip Flute (LCF) | 61 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 103 mm |
| Number of Teeth | 2 |
| Flute Count (NOF) | 2 |
| Shank Length (LS) | 42 mm |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Body Material | Carbide |
