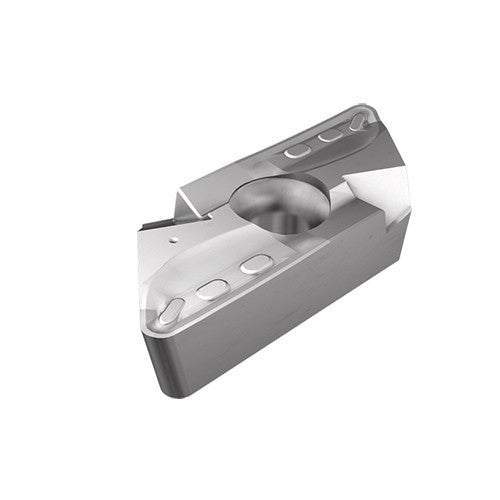

KNMX 3331-RP IC9250
Item #: EH5507640
Brand: Iscar
Model #: 5507640
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Insert | Int 55° Diamond 93 5° Approach | |
| Min D.O.C. | 0.039″ |
| Insert Style | KNMX |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Corner Radius (RE) | 0.02″ |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Size | 3331 |
| Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Cutting Edge Length (L) | 0.776″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | R/LP |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 55° Parallelogram |
| Coating | TiCN+alpha Al2O3+TiN |
| Body Material | Carbide |
| Grade | IC9250 |
