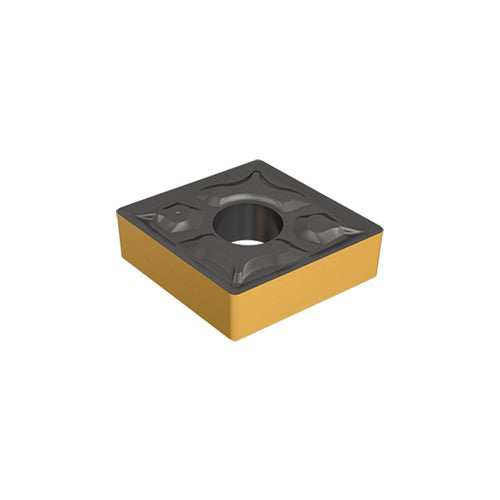

CNGG 643-TF IC907
Item #: EH5505905
Brand: Iscar
Model #: 5505905
| Product Specifications | |
|---|---|
| Applicable Material | Steel |Stainless Steel |Cast Iron |Hard Materials |Non Ferrous Metals |Hi-Temp Alloys | |
| Coating | TiAlN+TiN |
| Application | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach |
| Grade | IC907 |
| Insert Style | CNGG |
| Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.047″ |
| Min D.O.C. | 0.059″ |
| Insert Size | 643 |
| Depth of Cut Maximum (APMX) | 0.256″ |
| Cutting Edge Length (L) | 0.76″ |
| Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Insert Thickness (S) | 1/4″ |
| Max. Turning Feed (ft(max)) | 0.0216 ″/rev |
| Inscribed Circle Diameter (IC) | 3/4″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 80° Rhombic |
