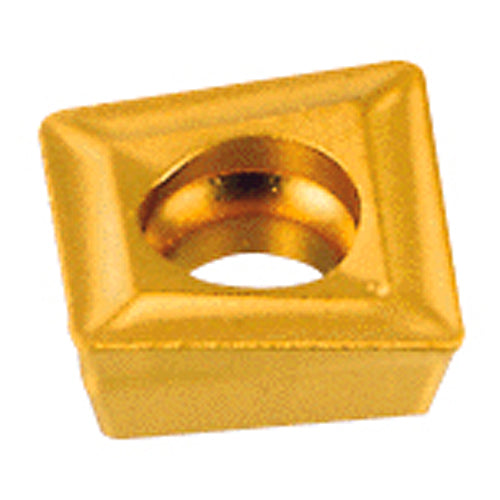

XOMT 060204-DT IC520M
Item #: EH5503073
Brand: Iscar
Model #: 5503073
| Product Specifications | |
|---|---|
| Cutting Edge Length (L) | 0.243″ |
| Grade | IC520M |
| Insert Thickness (S) | 0.101″ |
| Application | | Drilling | Drilling Ext Face Int. Turning | Int. XOMT 88° Approach | |
| Insert Included Angle (EPSR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Inscribed Circle Diameter (IC) | 0.243″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ |
| Tool Type | Indexable drilling inserts |
| Shape | Special |
| Measurement Type | Inch |
| Coating | TiCN |
| Body Material | Carbide |
