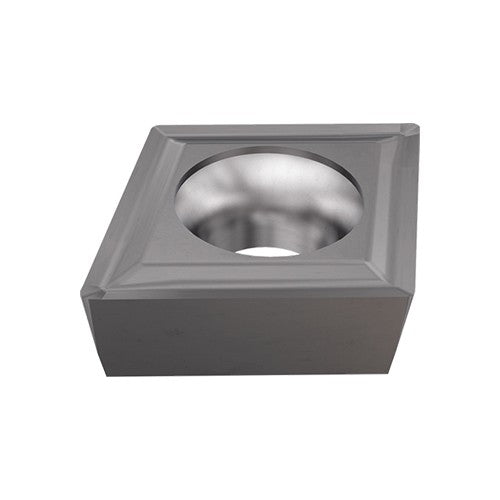

CCGT 2-1 IC30N
Item #: EH5503029
Brand: Iscar
Model #: 5503029
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hard Materials | |
| Tool Type | Turn Positive Inserts |
| Application | | Ext. 80° Diamond 93° Approach | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | Int. 80°Diamond 90° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | |
| Fixing Hole Diameter (D1) | 0.11″ |
| Insert Style | CCGT |
| Min D.O.C. | 0.02″ |
| Corner Radius (RE) | 0.0157″ |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Size | 2-1 |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.254″ |
| Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.094″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Chip Breaker Type | T |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
| Coating | Uncoated |
| Shape | 80° Rhombic |
| Grade | IC30N |
| Body Material | Carbide |
