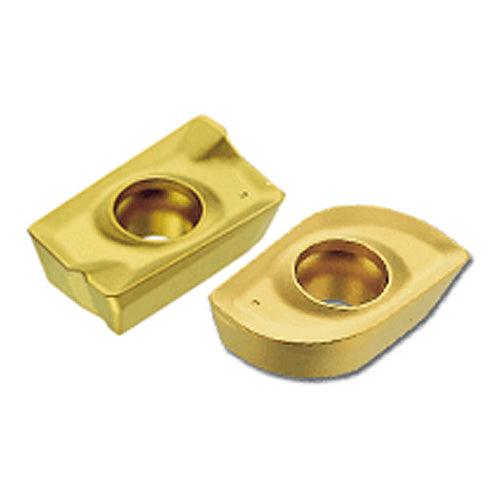

APKT 160416R-HM IC950
Item #: EH455694337
Brand: Iscar
Model #: 5694337
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Shape | 85° Parallelogram |
| Application | | Countersinking | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Cutting Edge Length (L) | 16.7 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.7 mm |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.6 mm |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 14 mm |
| Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Width (W1) | 9.45 mm |
| Cutting Edge Effective Length (LE) | 15.25 mm |
| Insert Thickness (S) | 5.3 mm |
| Measurement Type | Metric |
| Grade | IC950 |
| Body Material | Carbide |
