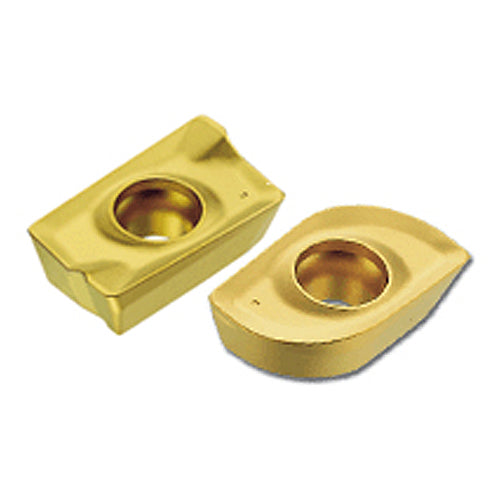

APKT 1604PDL-HM IC328
Item #: EH455601395
Brand: Iscar
Model #: 5601395
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Shape | 85° Parallelogram |
| Application | | Countersinking | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Cutting Edge Length (L) | 17.2 mm |
| Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 17.2 mm |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 14 mm |
| Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Width (W1) | 9.45 mm |
| Cutting Edge Effective Length (LE) | 15.3 mm |
| Insert Thickness (S) | 5.25 mm |
| Measurement Type | Metric |
| Coating | TiCN |
| Body Material | Carbide |
| Grade | IC328 |
