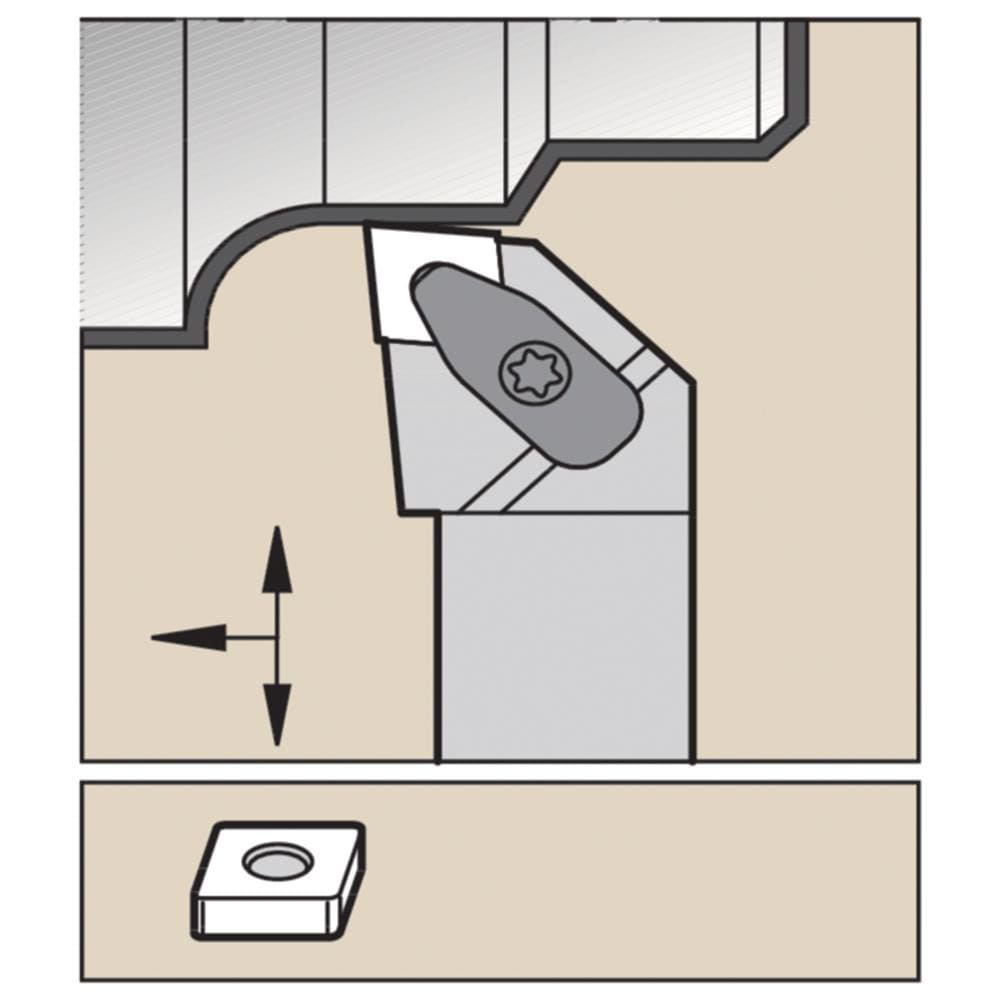

Brand: Widia / Part #: 5697888
Item #: 97569263
Brand: Widia
Model #: 5697888
Product Specifications
| Cutting Direction | Left Hand |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | 1906.. |
| Toolholder Style | DCLNL |
| Rake | Negative |
| Rake Angle | -5 (Axial);-5 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 95.000 |
| Insert Holding Method | Clamp |
| Insert Compatibility | CN..1906.. |
| Shank Width (mm) | 40.00 |
| Shank Height (mm) | 40.00 |
| Series | DCLN |
| Overall Length (mm) | 250.0000 |
| Cutting Tool Application | Facing; Copying; Turning |
| Head Length (mm) | 40.01 |
| Back of Bar to Cutting Edge (mm) | 50.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 19.05 |
| Toolholder Material | Steel |
| ISO Number | DCLNL4040S19KC06 |
| Complete Insert Compatibility | CN.. |
| Insert Thickness | 6.35 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 19.05 |
