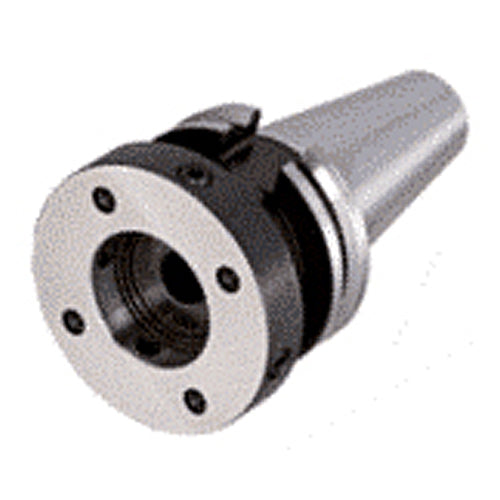

ADJ DIN69871 40 D70
Item #: EH4505985
Brand: Iscar
Model #: 4505985
| Product Specifications | |
|---|---|
| Protruding Length (LPR) | 50 mm |
| Weight of Item (WT) | 1.28 Kg |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 35 mm |
| Body Diameter_2 (BD_2) | 46 mm |
| Body Diameter (BD) | 70 mm |
| Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Length (LB) | 30.9 mm |
| Shank Length (LS) | 68.4 mm |
| Shank Size (SS) | 40 |
| Flange Diameter (DF) | 63.55 mm |
| Tool Type | DIN 69871 |
| Overall Length (OAL) | 118.4 mm |
| Measurement Type | Metric |
| Connection Code Machine Side (CCMS) | DIN69871 |
