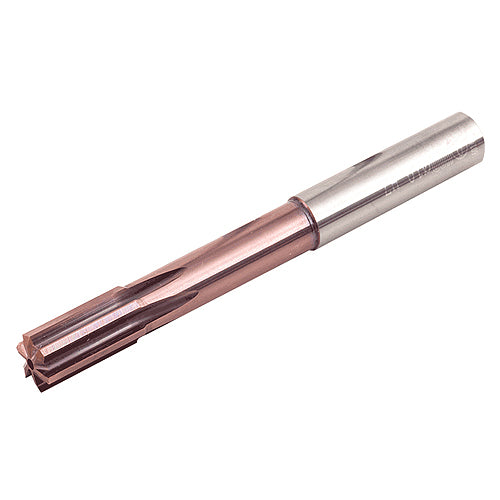

RM-MTR-1200-H7S-CS-C EVO
Item #: EH441813193
Brand: Iscar
Model #: 1813193
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Coating | evotec for reamers UOP |
| Application | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | |
| Coolant Supply Property (CSP) | Through Hole |
| Usable Length (LU) | 85 mm |
| Length Chip Flute (LCF) | 23 mm |
| Cutting Edge Length (L) | 18 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Point Length (PL) | 0.5 mm |
| Flute Count (NOF) | 6 |
| Tool Type | Solid Carbide Reamers |
| Overall Length (OAL) | 130 mm |
| Body Material | Carbide |
| Grade | EVO |
| Body Diameter (BD) | 9.6 mm |
