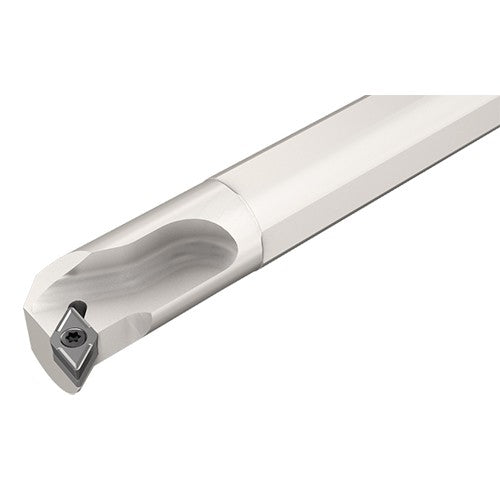

A-SDUCL 8-2
Item #: EH366862410
Brand: Iscar
Model #: 6862410
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 5″ |
| Application | | Int 55° Diamond 93 5° Approach | |
| Reduced Body Diameter Length (LDRED) | 1″ |
| Rake Angle Axial (GAMP) | 3 Degrees |
| Shank Height (H) | 0.475″ |
| Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 0.406″ |
| Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DCMT 2-0-PF |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.688″ |
| Measurement Type | Inch |
