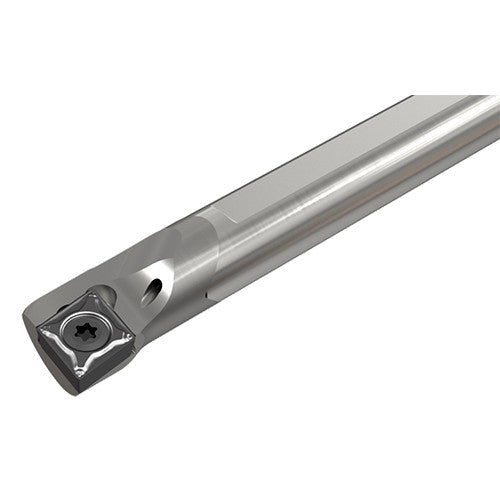

A-SCLCL 12-3
Item #: EH366862394
Brand: Iscar
Model #: 6862394
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Application | | Int. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 7″ |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 1.438″ |
| Rake Angle Radial (GAMF) | -5 Degrees |
| Shank Height (H) | 0.725″ |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.594″ |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1″ |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
