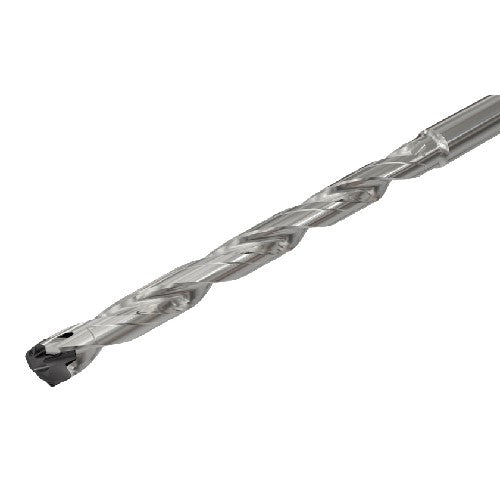

DCN 0295-354-0314C-12D
Item #: EH323375508
Brand: Iscar
Model #: 3375508
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.295″ |
| Overall Length (OAL) | 5.378″ |
| Usable Length (LU) | 3.5866″ |
| Shank Length (LS) | 1.42″ |
| Length Group | 12D |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Round |
| Measurement Type | Inch |
| Application | | Drilling | |
| Master Insert Identification (MIID) | ICP 075 |
| Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Point Length (PL) | 0.0433″ |
| Insert Seat Size Code (SSC) | 7.0 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.295″ |
| Decimal Equivalent | 0.295″ |
| Cutting Diameter Maximum (DCX) | 0.311″ |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 3.961″ |
