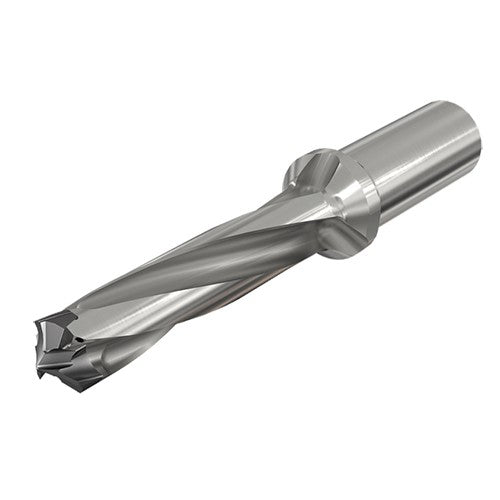

D3N 0787-394-100R-5D
Item #: EH323363076
Brand: Iscar
Model #: 3363076
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.787″ |
| Overall Length (OAL) | 7.766″ |
| Usable Length (LU) | 4.11″ |
| Shank Length (LS) | 2.2″ |
| Length Group | 5D |
| Measurement Type | Inch |
| Application | | Drilling | |
| Master Insert Identification (MIID) | H3P 200 |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Point Length (PL) | 0.1701″ |
| Insert Seat Size Code (SSC) | 20 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.787″ |
| Flange Diameter (DF) | 1.26″ |
| Cutting Diameter Maximum (DCX) | 0.823″ |
| Decimal Equivalent | 0.787″ |
| Protruding Length (LPR) | 5.565″ |
