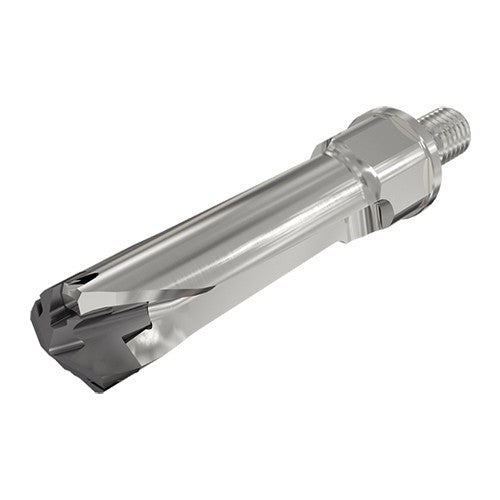

DCNM 150-045-M12-3D
Item #: EH323352577
Brand: Iscar
Model #: 3352577
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.591″ |
| Protruding Length (LPR) | 2.9″ |
| Usable Length (LU) | 2.1142″ |
| Overall Length (OAL) | 3.769″ |
| Length Group | 3D |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Inch |
| Tool Type | Indexable Insert Drills |
| Master Insert Identification (MIID) | ICP 150 |
| Connection Diameter Machine Side (DCONMS) | 0.984″ |
| Point Length (PL) | 0.08937″ |
| Insert Seat Size Code (SSC) | 15.0 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.591″ |
| Decimal Equivalent | 0.591″ |
| Cutting Diameter Maximum (DCX) | 0.626″ |
| Connection Code Machine Side (CCMS) | FLEXFIT |
