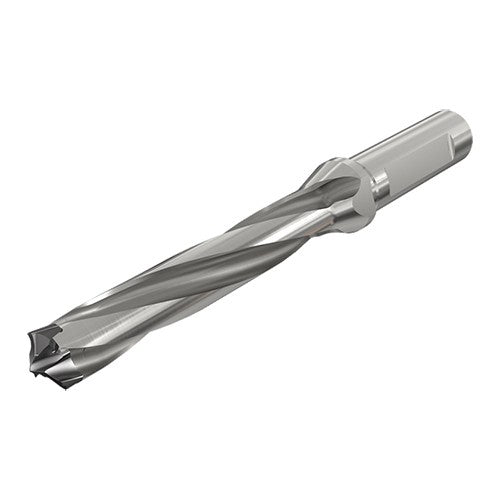

D3N 130-065-16A-5D
Item #: EH323335713
Brand: Iscar
Model #: 3335713
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 13 mm |
| Protruding Length (LPR) | 92.08 mm |
| Usable Length (LU) | 67.91 mm |
| Functional Length (LF) | 89.17 mm |
| Length Group | 5D |
| Overall Length (OAL) | 140.08 mm |
| Shank Type | Weldon |
| Shank Length (LS) | 48 mm |
| Application | | Drilling | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Master Insert Identification (MIID) | H3P 130 |
| Insert Seat Size Code (SSC) | 13 |
| Point Length (PL) | 2.91 mm |
| Cutting Diameter Minimum (DCN) | 13 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 13.4 mm |
| Flange Diameter (DF) | 20 mm |
