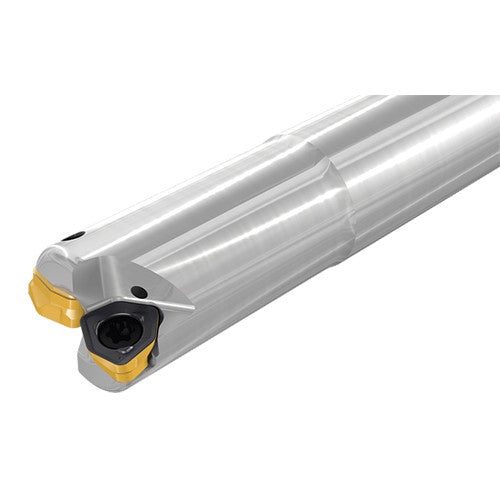

FFT3 EFM D08-1-080-C12-03
Item #: EH313384918
Brand: Iscar
Model #: 3384918
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 8 mm |
| Master Insert Identification (MIID) | FFT3 WXMT 030206T |
| Cutting Diameter (DC) | 3.6 mm |
| Weight of Item (WT) | 0 Kg |
| Cutting Diameter Maximum (DCX) | 8 mm |
| Head Length (LH) | 20 mm |
| Cutting Item Count (CICT) | 1 |
| Functional Length (LF) | 80 mm |
| Depth of Cut Maximum (APMX) | 0.6 mm |
| Torque (TQ) | 0.5 Nxm |
| Overall Length (OAL) | 80 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Round |
| Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 1.1 Degrees |
| Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
