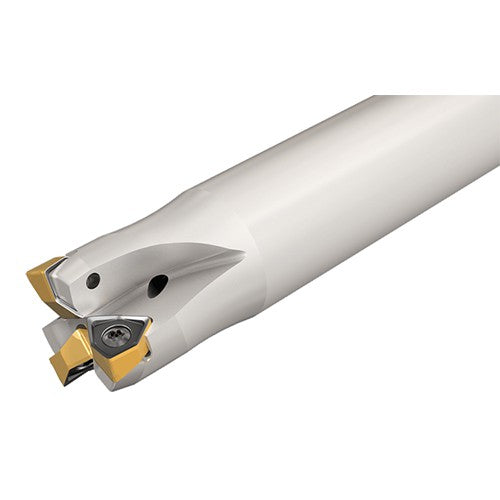

H690 EWN D0.75-3-W0.75R04
Item #: EH313341138
Brand: Iscar
Model #: 3341138
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 3/4″ |
| Weight of Item (WT) | 0.31 Lbs |
| Cutting Diameter (DC) | 3/4″ |
| Head Length (LH) | 1″ |
| Cutting Item Count (CICT) | 3 |
| Functional Length (LF) | 2.109″ |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Flute Count (NOF) | 3 |
| Overall Length (OAL) | 3-1/8″ |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Weldon |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.6 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Rampdown | Shouldering | Slotting | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Body Material | Steel |
| Master Insert Identification (MIID) | H690 WNMU 0403-PNTR |
| Connection Code Machine Side (CCMS) | Weldon |
