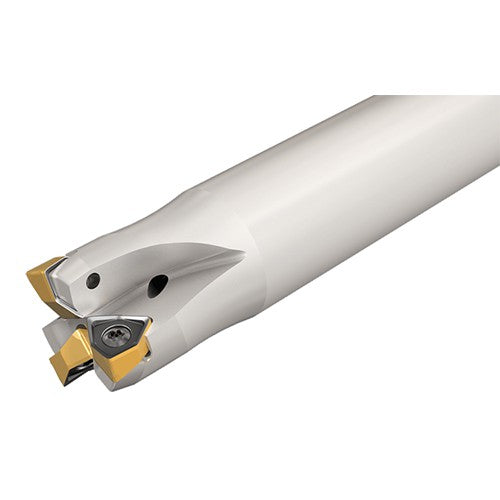

H690 EWN D20-3-C20-R04
Item #: EH313341090
Brand: Iscar
Model #: 3341090
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 20 mm |
| Weight of Item (WT) | 0.24 Kg |
| Cutting Diameter (DC) | 20 mm |
| Head Length (LH) | 26 mm |
| Cutting Item Count (CICT) | 3 |
| Functional Length (LF) | 110 mm |
| Depth of Cut Maximum (APMX) | 4 mm |
| Flute Count (NOF) | 3 |
| Overall Length (OAL) | 110 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Round |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | H690 WNMU 0404-PNTR |
| Connection Code Machine Side (CCMS) | Cylindrical |
