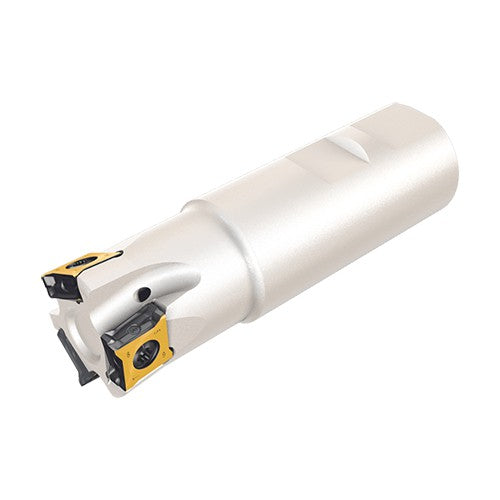

T890HT ELN D32-3-W32-13
Item #: EH313315277
Brand: Iscar
Model #: 3315277
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 32 mm |
| Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 32 mm |
| Functional Length (LF) | 74 mm |
| Cutting Item Count (CICT) | 3 |
| Usable Length (LU) | 37.4 mm |
| Depth of Cut Maximum (APMX) | 9.5 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 110 mm |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon |
| Measurement Type | Metric |
| Application | | Facing | Shouldering | Slotting | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.56 kg |
