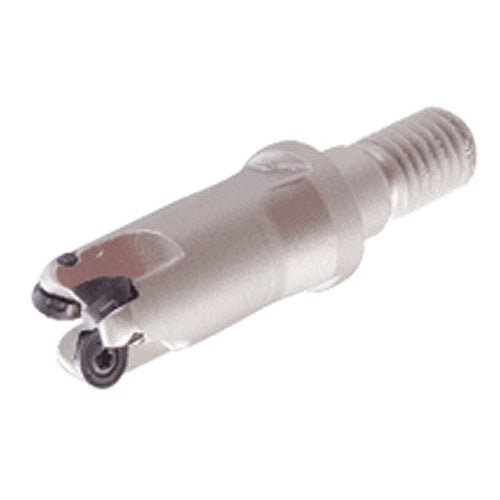

ERCM D40-M16-12
Item #: EH313181040
Brand: Iscar
Model #: 3181040
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 28 mm |
| Weight of Item (WT) | 0.21 Kg |
| Cutting Diameter (DC) | 28 mm |
| Functional Length (LF) | 43 mm |
| Cutting Diameter Maximum (DCX) | 40 mm |
| Tool Type | Round corner cutters |
| Cutting Item Count (CICT) | 3 |
| Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Depth of Cut Maximum (APMX) | 6 mm |
| Body Diameter (BD) | 29 mm |
| Overall Length (OAL) | 68 mm |
| Corner Radius (RE) | 6 mm |
| Ramping Angle Maximum (RMPX) | 6.5 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 29 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | R90MT 1205-RM |
| Connection Code Machine Side (CCMS) | FLEXFIT |
