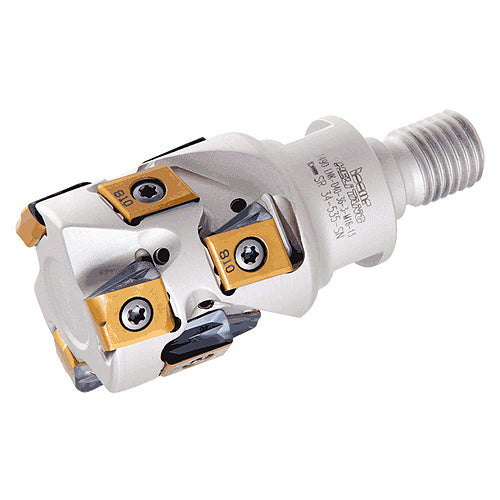

T490 LNM D32-36-3-M16-08
Item #: EH3107053
Brand: Iscar
Model #: 3107053
| Product Specifications | |
|---|---|
| Application | | Shouldering | |
| Master Insert Identification (MIID) | T490 LNMT 0804PNR |
| Cutting Item Count (CICT) | 15 |
| Coolant Supply Property (CSP) | Through Hole |
| Depth of Cut Maximum (APMX) | 36 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 32 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 30 mm |
| Body Material | Steel |
| Flute Count (NOF) | 3 |
| Tool Type | 90° Extended flute endmills |
| Cutting Length | 36 mm |
| Connection Code Machine Side (CCMS) | FLEXFIT |
