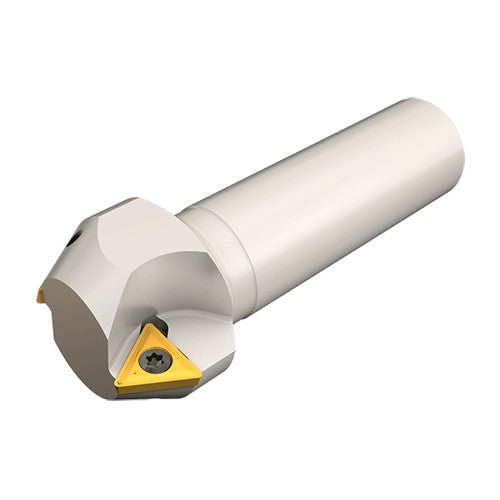

T260 ELN D12-4-C12-05
Item #: EH3106171
Brand: Iscar
Model #: 3106171
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 12 mm |
| Weight of Item (WT) | 0.06 Kg |
| Cutting Diameter (DC) | 12 mm |
| Head Length (LH) | 20 mm |
| Cutting Diameter Maximum (DCX) | 17.5 mm |
| Functional Length (LF) | 80 mm |
| Cutting Item Count (CICT) | 4 |
| Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 4.5 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 80 mm |
| Tool Cutting Edge Angle (KAPR) | 60 Degrees |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Application | | Countersinking | Slanted Shoulder & Chamfer | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | T290 LNHT 0502 |
| Connection Code Machine Side (CCMS) | Cylindrical |
