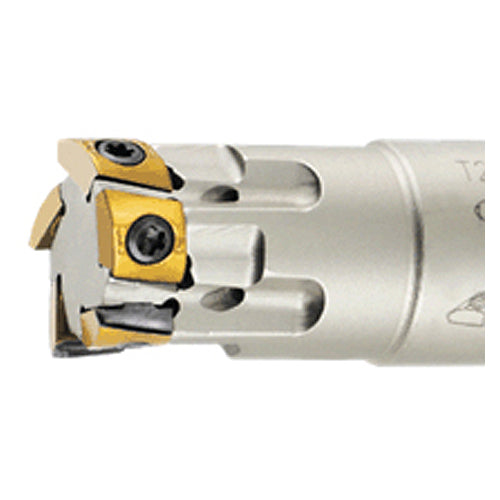

T290 ELN D1.0-3W1.0-10-XL
Item #: EH3105341
Brand: Iscar
Model #: 3105341
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1″ |
| Head Length (LH) | 1.22″ |
| Cutting Diameter (DC) | 1″ |
| Functional Length (LF) | 3.859″ |
| Cutting Item Count (CICT) | 3 |
| Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Flute Count (NOF) | 3 |
| Overall Length (OAL) | 5″ |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Weldon |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Shouldering | Slotting | |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Measurement Type | Inch |
| Master Insert Identification (MIID) | T290 LNHT 100405TR |
| Body Material | Steel |
| Weight of Item (WT) | 0.95 Lbs |
| Connection Code Machine Side (CCMS) | Weldon |
