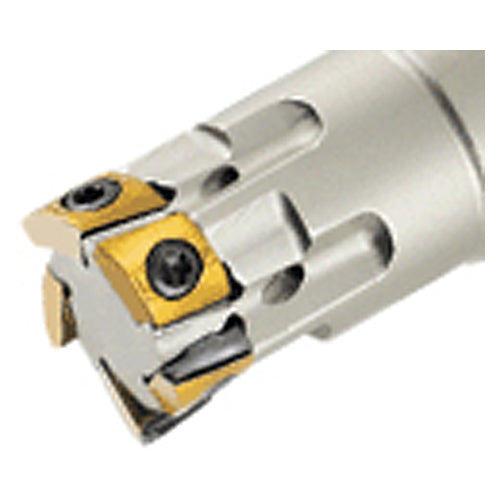

T290 ELN D20-03-C20-10
Item #: EH3105328
Brand: Iscar
Model #: 3105328
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 20 mm |
| Head Length (LH) | 27 mm |
| Cutting Diameter (DC) | 20 mm |
| Functional Length (LF) | 110 mm |
| Cutting Item Count (CICT) | 3 |
| Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 10 mm |
| Flute Count (NOF) | 3 |
| Overall Length (OAL) | 110 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Round |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Shouldering | Slotting | |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | T290 LNHT 100405TR |
| Body Material | Steel |
| Weight of Item (WT) | 0.23 Kg |
| Connection Code Machine Side (CCMS) | Cylindrical |
