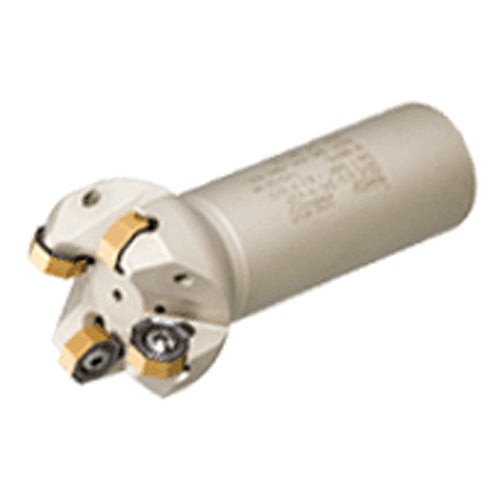

SOE45 8/16-D040-04-W32R
Item #: EH3105297
Brand: Iscar
Model #: 3105297
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 40 mm |
| Weight of Item (WT) | 0.72 Kg |
| Cutting Diameter (DC) | 37.65 mm |
| Head Length (LH) | 111.2 mm |
| Cutting Diameter Maximum (DCX) | 50.4 mm |
| Functional Length (LF) | 74 mm |
| Cutting Item Count (CICT) | 4 |
| Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 2.9 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 111.3 mm |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Shank Type | Weldon |
| Diameter | 35.4 mm |
| Ramping Angle Maximum (RMPX) | 3.7 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Profiling | Rampdown | Slanted Shoulder & Chamfer | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | ONHU 050505-TN |
| Connection Code Machine Side (CCMS) | Weldon |
