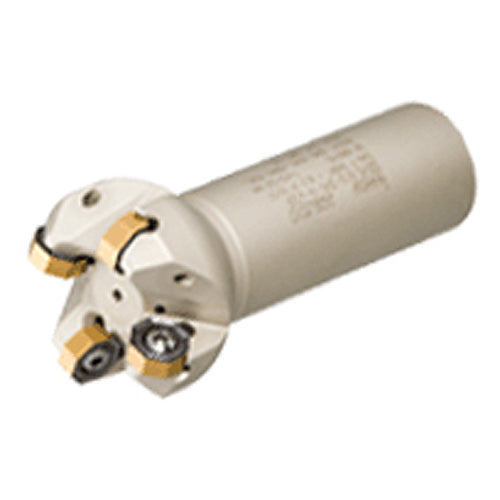

SOE45 8/16-D025-02-W20R
Item #: EH3105288
Brand: Iscar
Model #: 3105288
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 25 mm |
| Weight of Item (WT) | 0.25 Kg |
| Cutting Diameter (DC) | 22.65 mm |
| Head Length (LH) | 101.2 mm |
| Cutting Diameter Maximum (DCX) | 35.4 mm |
| Functional Length (LF) | 75 mm |
| Cutting Item Count (CICT) | 2 |
| Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 2.9 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 101.3 mm |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Shank Type | Weldon |
| Diameter | 20.9 mm |
| Ramping Angle Maximum (RMPX) | 3.1 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Profiling | Rampdown | Slanted Shoulder & Chamfer | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | ONHU 050505-TN |
| Connection Code Machine Side (CCMS) | Weldon |
