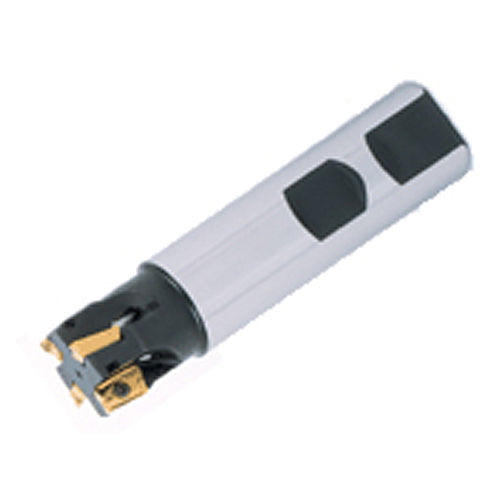

HM90 E90AD-D40-3-C32
Item #: EH3101868
Brand: Iscar
Model #: 3101868
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 40 mm |
| Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 40 mm |
| Functional Length (LF) | 130 mm |
| Cutting Item Count (CICT) | 3 |
| Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 14.3 mm |
| Flute Count (NOF) | 3 |
| Overall Length (OAL) | 130 mm |
| Coolant Supply Property (CSP) | External |
| Shank Type | Round |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 4 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | ADKT 1505PDTR |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.85 Kg |
