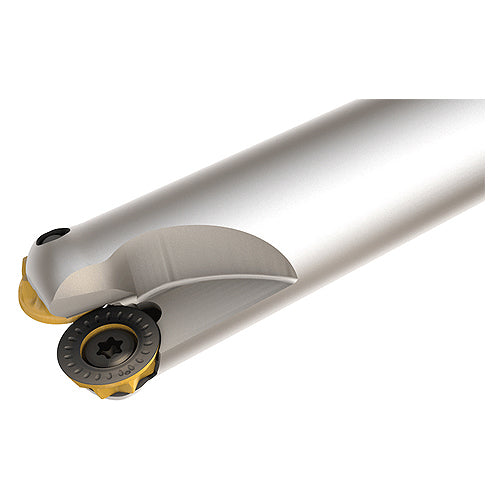

ER D17A25-3-C32-08
Item #: EH3101795
Brand: Iscar
Model #: 3101795
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 17 mm |
| Weight of Item (WT) | 0.8 Kg |
| Cutting Diameter (DC) | 17 mm |
| Head Length (LH) | 60 mm |
| Cutting Diameter Maximum (DCX) | 25 mm |
| Tool Type | Round corner cutters |
| Cutting Item Count (CICT) | 3 |
| Body Diameter (BD) | 22.5 mm |
| Depth of Cut Maximum (APMX) | 4 mm |
| Corner Radius (RE) | 4 mm |
| Overall Length (OAL) | 160 mm |
| Front Type | A |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 5.4 Degrees |
| Measurement Type | Metric |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | RXCR 0802 |
