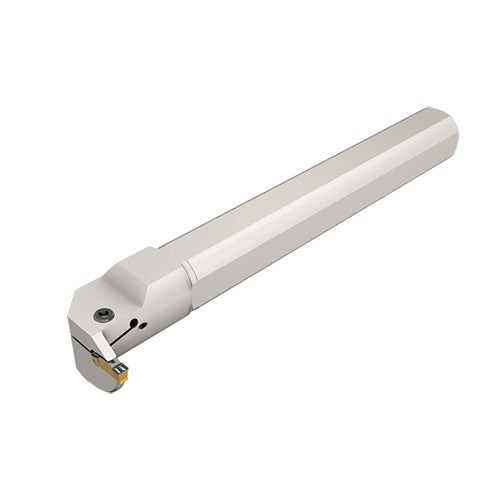

TGIR 31.7C-6
Item #: EH2850061
Brand: Iscar
Model #: 2850061
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 0.236″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Cutting Width Maximum (CWX) | 1/4″ |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Depth Maximum (CDX) | 0.7″ |
| Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Minimum Bore Diameter (DMIN) | 1.85″ |
| Body Material | Steel |
| Functional Width (WF) | 1.14″ |
| Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 2″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 8.65″ |
