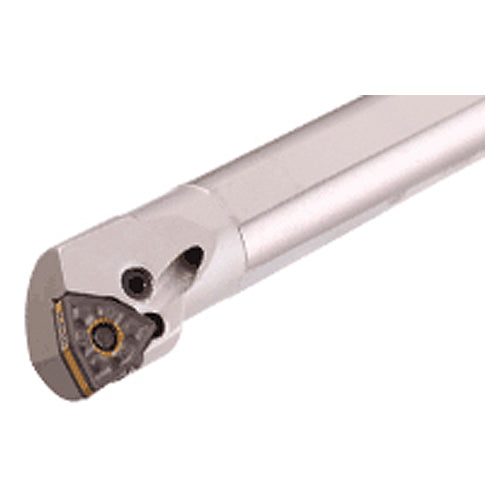

A32S PWLNL-08
Item #: EH283606584
Brand: Iscar
Model #: 3606584
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Application | | Int. 80° Trigon 95° Approach | |
| Overall Length (OAL) | 250 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 50 mm |
| Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 28 mm |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 22 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | WNMG 080404-GN |
| Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 39 mm |
| Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
