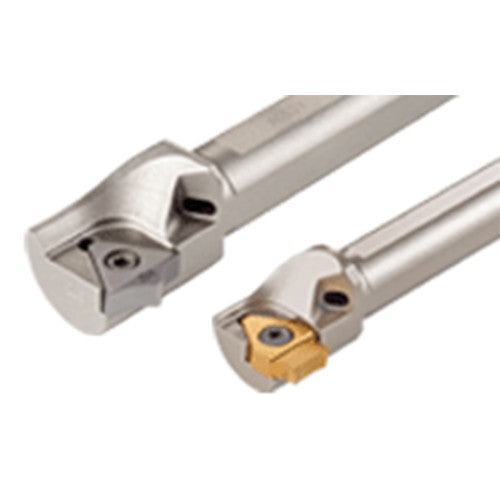

SXCIR 20-13
Item #: EH2801403
Brand: Iscar
Model #: 2801403
| Product Specifications | |
|---|---|
| Cutting Depth Maximum (CDX) | 4 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Minimum Bore Diameter (DMIN) | 30 mm |
| Application | | Int. Grooving | Int. Grooving (side limit) | |
| Functional Width (WF) | 14.5 mm |
| Body Material | Steel |
| Head Length (LH) | 25 mm |
| Tool Type | Wide Profiling Tools |
| Overall Length (OAL) | 150 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
