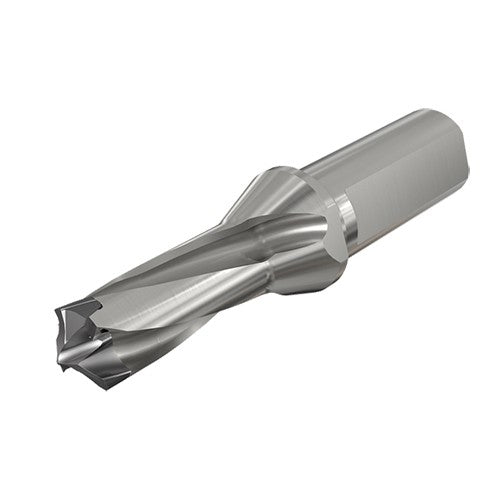

D3N 0748-112-100A-1.5D
Item #: EH233362954
Brand: Iscar
Model #: 3362954
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.748″ |
| Overall Length (OAL) | 4.879″ |
| Usable Length (LU) | 1.284″ |
| Shank Length (LS) | 2.21″ |
| Length Group | 2D |
| Measurement Type | Inch |
| Application | | Drilling | |
| Master Insert Identification (MIID) | H3P 0748 |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Point Length (PL) | 0.1614″ |
| Insert Seat Size Code (SSC) | 19 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.748″ |
| Flange Diameter (DF) | 1.26″ |
| Cutting Diameter Maximum (DCX) | 0.784″ |
| Decimal Equivalent | 0.748″ |
| Protruding Length (LPR) | 2.676″ |
