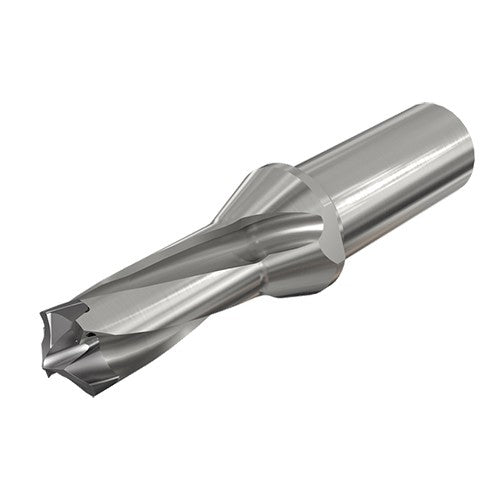

D3N 0669-100-075R-1.5D
Item #: EH233362950
Brand: Iscar
Model #: 3362950
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.669″ |
| Overall Length (OAL) | 4.359″ |
| Usable Length (LU) | 1.143″ |
| Shank Length (LS) | 1.97″ |
| Length Group | 2D |
| Measurement Type | Inch |
| Application | | Drilling | |
| Master Insert Identification (MIID) | H3P 0669 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Point Length (PL) | 0.1386″ |
| Insert Seat Size Code (SSC) | 17 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.669″ |
| Flange Diameter (DF) | 0.984″ |
| Cutting Diameter Maximum (DCX) | 0.705″ |
| Decimal Equivalent | 0.669″ |
| Protruding Length (LPR) | 2.392″ |
