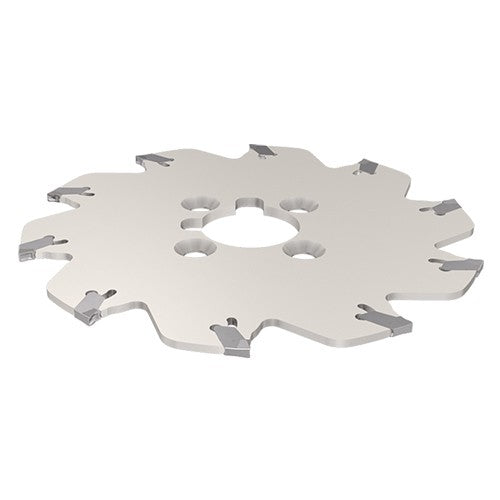

SGSF 160-3-1.500K
Item #: EH2300969
Brand: Iscar
Model #: 2300969
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6.3″ |
| Master Insert Identification (MIID) | GSFN 3 |
| Cutting Item Count (CICT) | 10 |
| Application | | Side Slotting | Slitting | Slotting | T Slotting | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 |
| Rotational Speed Maximum (RPMX) | 500 Rev/min |
| Cutting Depth Maximum (CDX) | 1.55″ |
| Tool Type | Slitting cutters |
| Hub Diameter (DHUB) | 3.15″ |
| Measurement Type | Inch |
| Hub Thickness (THUB) | 0.09″ |
| Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.14″ |
| Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 0.11″ |
