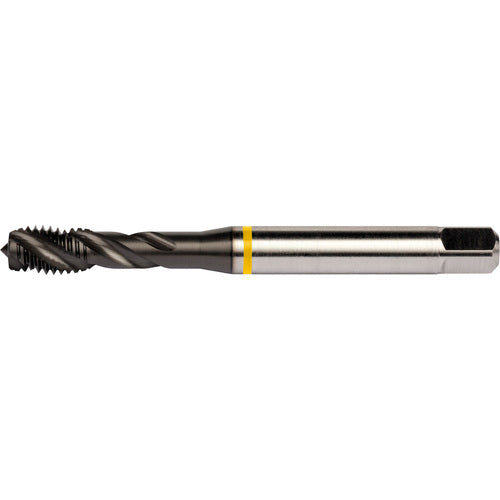

#6-32 HSS-E PM 3 Flute 2B 40 Degree Yellow Shark Machine Tap Spiral Flute-TiAlN/Top E-code # E8086-32
Item #: DS047350511
Brand: Dormer
Model #: 7350511
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #6 |
| Standard | DIN ANSI |
| Threads per Inch (TPI) | 32 |
| Tool Type | Machine Tap |
| Thread Standard | UNC |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 2.205″ |
| Coating | TiAlN/Top |
| Thread Cutting Part Length (THL) | 0.256″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Style | Semi-Bottoming |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 40 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel |
| Length Group | 2xD |
| Cutting Edge Material | HSS-E PM |
| Square Size | 0.108″ |
| Thread Tolerance Class (TCTR) | 2B |
| Measurement Type | Machine Screw |
| Special Feature | Yellow Shark |
