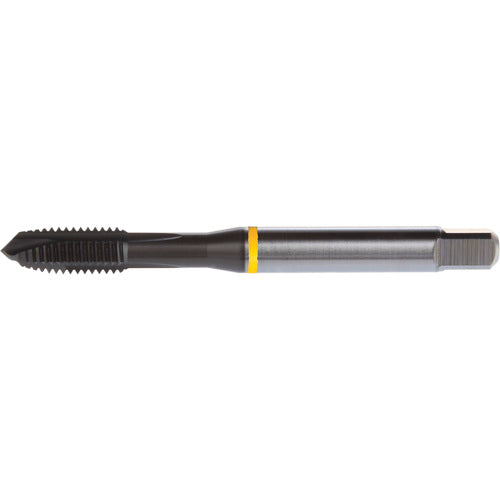

#10-32 3 Flute H3 HSS-E PM DIN ANSI Machine Tap - Yellow Shark for Low Alloy Steels - Plug Style E-code # E90910-32
Item #: DS047350482
Brand: Dormer
Model #: 7350482
| Product Specifications | |
|---|---|
| Thread Standard | UNF |
| Applicable Material | Steel |
| Thread Size | #10 - 32 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Diameter Size (TDZ) | #10 |
| Thread Cutting Part Length (THL) | 0.551″ |
| Threads per Inch (TPI) | 32 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | H3 |
| Tapping Prehole Diameter (Pre-hole) | #21 |
| Usable Length (LU) | 1.102″ |
| Flute Length | 0.551″ |
| Overall Length (OAL) | 2.756″ |
| End Shape | Spiral Point |
| Chamfer | 3.5P-5P |
| Style | Plug |
| Coating | TiAlN/Top |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS-E PM |
| Length Group | 2.5xD |
| Standard | DIN ANSI |
| Measurement Type | Machine Screw |
| Tool Type | Machine Tap |
| Series/List # | E909 |
| Special Feature | Yellow Shark |
