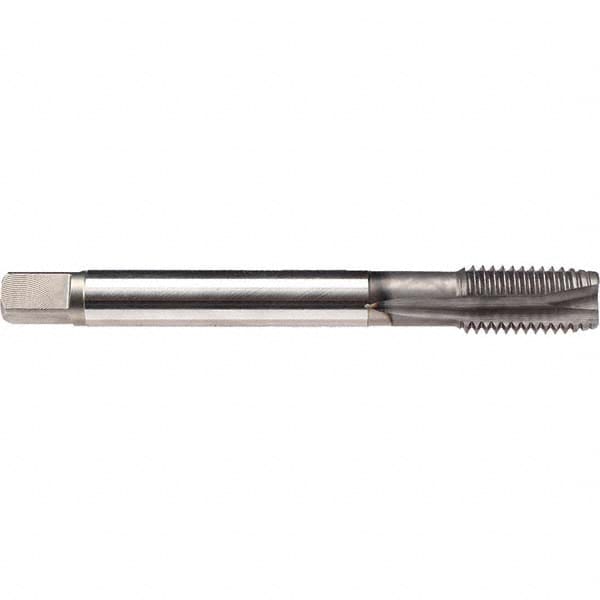

Emuge - M10x1.50 Metric 6H 3 Flute GLT-1 Finish HSS-E Spiral Point Tap
Item #: 95627667
Brand: Emuge
Model #: B020C300.0100
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
GLT-1 is a multi-layered coating that offers a hard surface coating and an anti-friction layer for fast and efficient chip removal. It is heat resistant, wear resistant and prevents sliding.GLT-1 is a proprietary coating exclusive to Emuge.
Vanadium high speed steel (HSSE) is made of HSS, carbon, vanadium carbide and other alloys to increase abrasive wear resistance and toughness. It is commonly used in general applications on stainless steels and high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M10x1.50 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Thread Limit | D5 |
| Finish/Coating | GLT-1 |
| Material | HSS-E |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Oversize | No |
| Thread Standard | Metric ;M |
| Series/List | B020C300 |
| Neck Length (Decimal Inch) | 1.5354 |
| Style | Spiral Point |
| Shank Diameter (mm) | 10.00 |
| Square Size (mm) | 8.00 |
| Material Application | Stainless Steel |
| Material Application2 | Steel |
