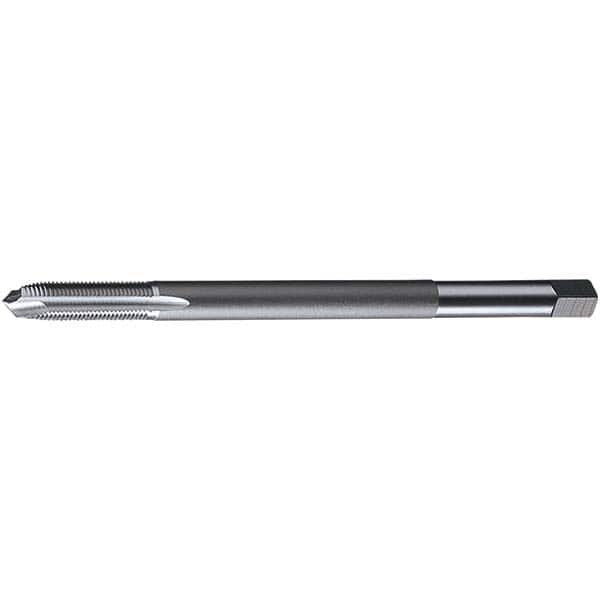

Greenfield Threading - Extension Taps Thread Size: M16 x 2.00 Overall Length (Inch): 6
Item #: 96925060
Brand: Greenfield Threading
Model #: 313609
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Extension taps are used for deep hole drilling and where a longer reach is required. They are designed with standard threads and an extended shank.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Product Specifications
Extension Taps; Thread Size: M16 x 2.00 ; Overall Length (Inch): 6 ; Overall Length (mm): 152.4000 ; Chamfer: Plug ; Thread Limit: D11 ; Number of Flutes: 3
| Thread Size | M16 x 2.00 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.4000 |
| Chamfer | Plug |
| Thread Limit | D11 |
| Number of Flutes | 3 |
| Tap Type | Extension |
| Finish/Coating | Bright |
| Flute Direction | Right Hand |
| Thread Standard | Metric |
| Material | High Speed Steel |
| Thread Length (Inch) | 1.81 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Length (Inch) | 0.56 |
| Flute Direction | Right Hand |
| Series/List | SPGPX+5 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Shank Size Type | Regular |
| PSC Code | 5136 |
