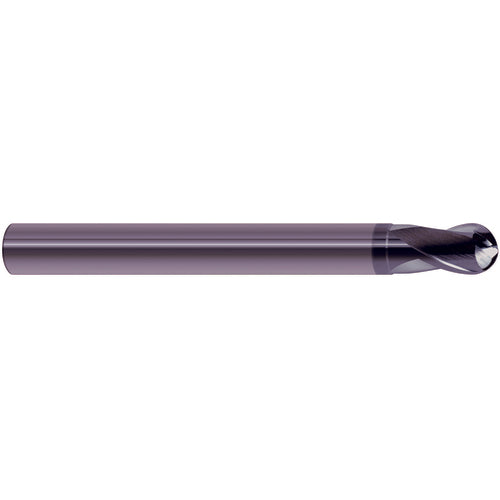

20 mm Dia. × 20 mm Shank × 20 mm DOC × 165 mm OAL, Carbide AlTiN, Spiral , 2 Flute, 30° Helix, Ballnose End Mill
Item #: DD9291361
Brand: KYOCERA SGS Precision Tools
Model #: 91361
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Usable Length (LU) | 145 mm |
| Depth of Cut Maximum (APMX) | 20 mm |
| Body Half Taper Angle (BHTA) | 45 Degrees |
| Overall Length (OAL) | 165 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Style | Ball Nose |
| Coating | AlTiN |
| Decimal Equivalent | 0.7874″ |
| Flute Count (NOF) | 2 |
