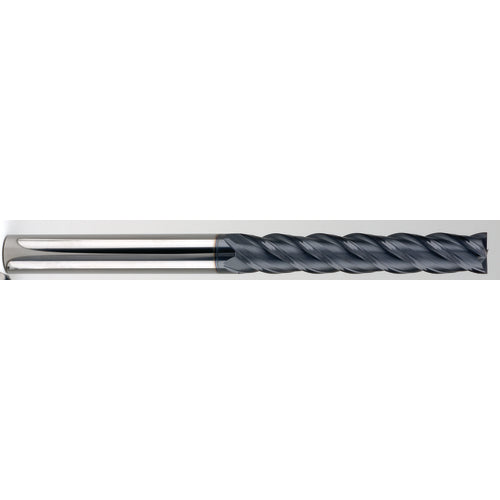

1/2 End Mill 4FL SQ TX - SER 07S 1/2x1/2x3x6
Item #: DD9270483
Brand: KYOCERA SGS Precision Tools
Model #: 70483
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Usable Length (LU) | 3″ |
| Depth of Cut Maximum (APMX) | 3″ |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 6″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | AlTiN |
| Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 38 Degrees |
| Series/List # | 07S |
| Shank Type | Round |
