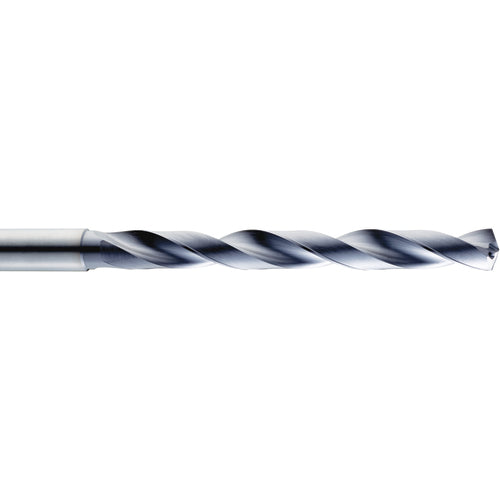

#21 Dia. × 6 mm Shank × 36 mm Flute Length × 74 mm OAL, 5xD, 124°, TA, 2 Flute, Coolant Thru, Round Solid Carbide Drill
Item #: DD9251906
Brand: KYOCERA SGS Precision Tools
Model #: 51906
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #21 |
| Tool Type | Drill |
| Decimal Equivalent | 0.159″ |
| Length Below Shank | 1.417″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #21 |
| Flute Type | Spiral |
| Length Group | 5xD |
| Measurement Type | Wire Gauge |
| Coating | TA |
| Series/List # | Ice-Carb |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Usable Length (LU) | 36 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 36 mm |
| Point Angle (SIG) | 124 Degrees |
| Overall Length (OAL) | 74 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
