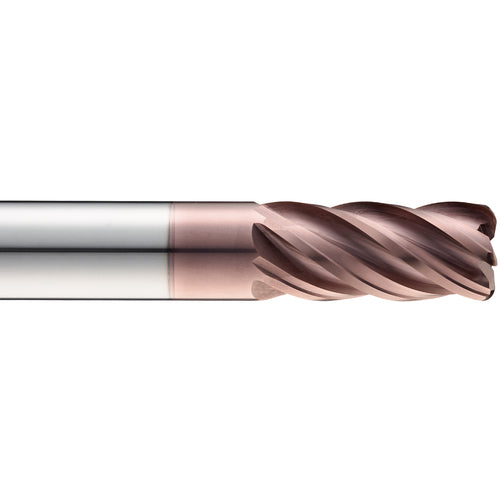

16.0 End Mill 5FL 1.50R TA - Z-CARB HPR 16x16x19x82
Item #: DD9248070
Brand: KYOCERA SGS Precision Tools
Model #: 48070
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 19 mm |
| Usable Length (LU) | 63 mm |
| Overall Length (OAL) | 82 mm |
| Corner Radius (RE) | 1.5 mm |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TA |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 |
| Decimal Equivalent | 0.6299″ |
| Flute Helix Angle (FHA) | 37 Degrees |
| Series/List # | Z-CARB HPR |
