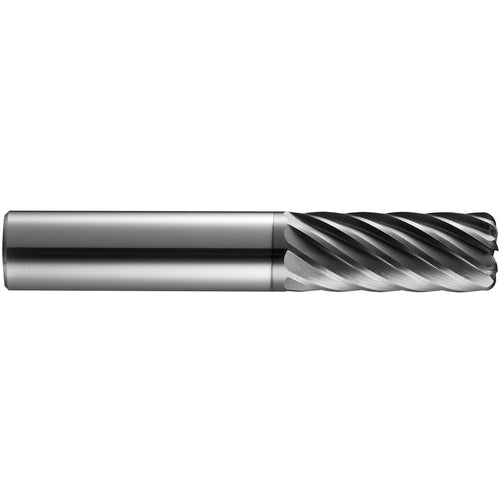

12.0 End Mill 9FL 2.50R TX - MULTI-CARB 12x12x26x83
Item #: DD9246639
Brand: KYOCERA SGS Precision Tools
Model #: 46639
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 26 mm |
| Usable Length (LU) | 51 mm |
| Overall Length (OAL) | 83 mm |
| Corner Radius (RE) | 2.5 mm |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 9 |
| Decimal Equivalent | 0.4724″ |
| Flute Helix Angle (FHA) | 35 Degrees |
