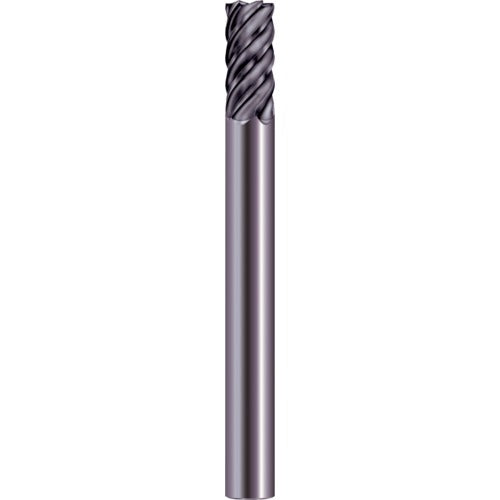

10.0 End Mill 6FL SQ TX - POWER-CARB 10x10x22x100
Item #: DD9246142
Brand: KYOCERA SGS Precision Tools
Model #: 46142
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 22 mm |
| Usable Length (LU) | 80 mm |
| Overall Length (OAL) | 102 mm |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 |
| Decimal Equivalent | 0.3937″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Measurement Type | Metric |
