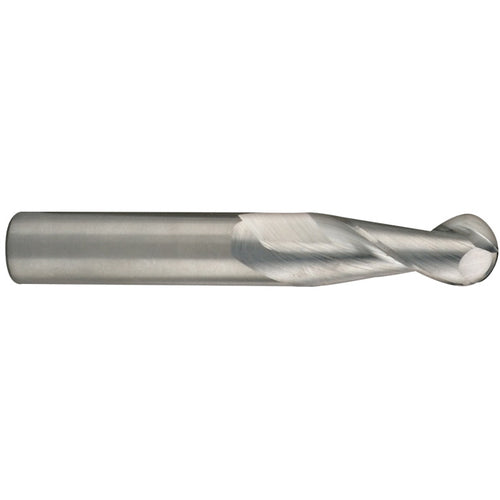

10 mm Dia. × 10 mm Shank × 22 mm DOC × 72 mm OAL, Carbide TiB2, Spiral , 2 Flute, 35° Helix, Ballnose End Mill
Item #: DD9244603
Brand: KYOCERA SGS Precision Tools
Model #: 44603
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Flute Helix Angle (FHA) | 35 Degrees |
| Depth of Cut Maximum (APMX) | 22 mm |
| Usable Length (LU) | 50 mm |
| Overall Length (OAL) | 72 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Style | Ball Nose |
| Coating | TiB2 |
| Decimal Equivalent | 0.3937″ |
