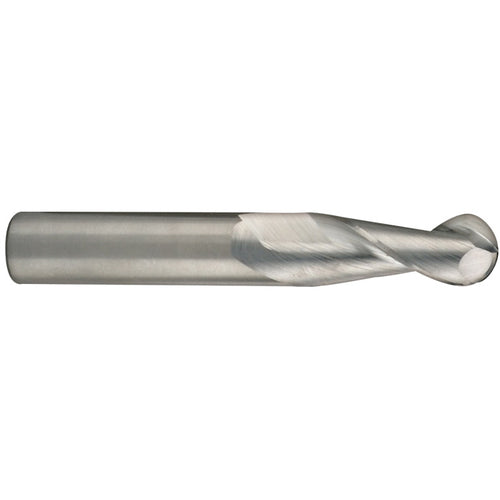

12 mm Dia. × 12 mm Shank × 26 mm DOC × 83 mm OAL, Carbide Uncoated, Spiral , 2 Flute, 35° Helix, Ballnose End Mill
Item #: DD9244576
Brand: KYOCERA SGS Precision Tools
Model #: 44576
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Flute Helix Angle (FHA) | 35 Degrees |
| Depth of Cut Maximum (APMX) | 26 mm |
| Usable Length (LU) | 57 mm |
| Overall Length (OAL) | 83 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Style | Ball Nose |
| Coating | Uncoated |
| Decimal Equivalent | 0.4724″ |
