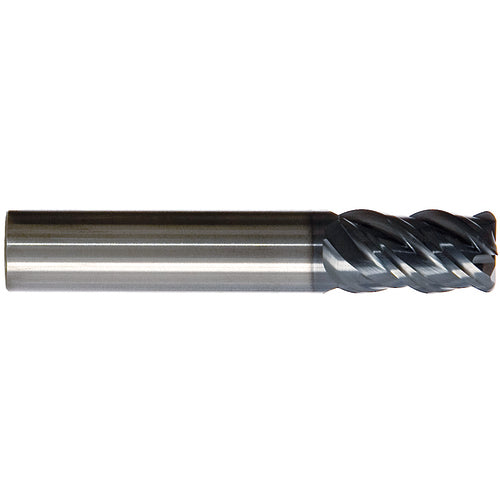

10.0 End Mill 4FL 0.50R TA - Z-CARB HTA 10x10x14x66
Item #: DD9242714
Brand: KYOCERA SGS Precision Tools
Model #: 42714
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Usable Length (LU) | 52 mm |
| Depth of Cut Maximum (APMX) | 14 mm |
| Corner Radius (RE) | 0.5 mm |
| Overall Length (OAL) | 66 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TA |
| Decimal Equivalent | 0.3937″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Shank Type | Round |
