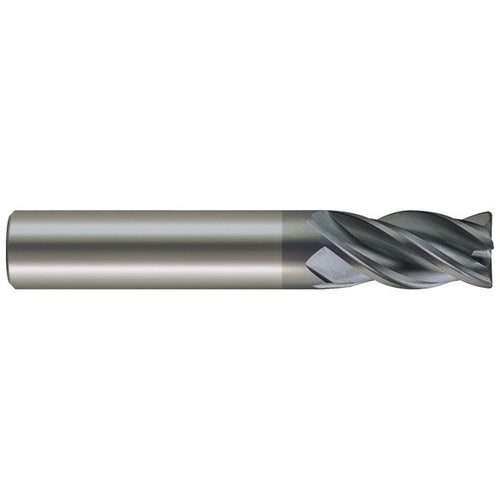

5/16 End Mill 4FL .020R TX - Z-CARB ZAP 5/16x5/16x13/16x3
Item #: DD9236453
Brand: KYOCERA SGS Precision Tools
Model #: 36453
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 13/16″ |
| Usable Length (LU) | 1-45/64″ |
| Overall Length (OAL) | 3″ |
| Corner Radius (RE) | 0.02″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.3125″ |
