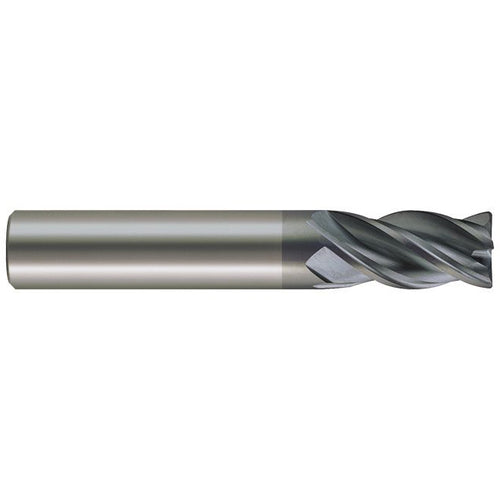

1/4 End Mill 4FL .020R TX - Z-CARB ZAP 1/4x1/4x1/2x4
Item #: DD9236449
Brand: KYOCERA SGS Precision Tools
Model #: 36449
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1/2″ |
| Usable Length (LU) | 1-7/8″ |
| Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.02″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.25″ |
